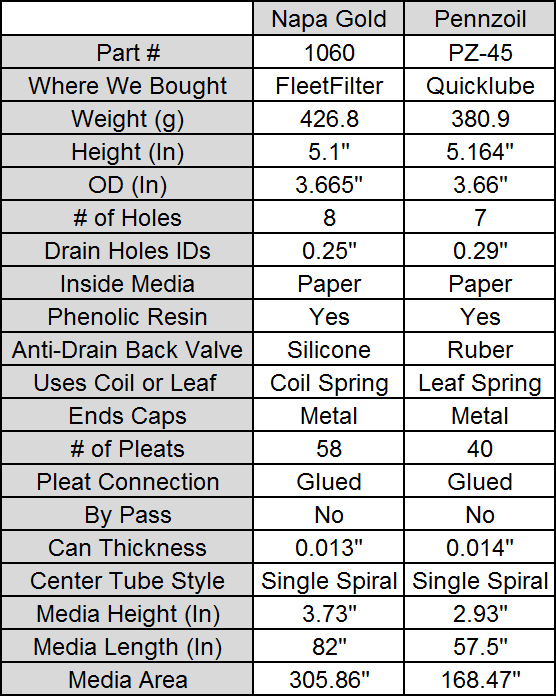

Wix Filter/NapaGold Oil Filter vs Pennzoil

Pennzoil_1.JPG Pennzoil_2.JPG


Pennzoil_3.JPG Pennzoil_4.JPG

  • Pennzoil uses a leaf spring rather than a coil spring; the leaf spring must always seat properly onto the end cap. Additionally, a leaf spring can bend under high pressures.
  • Pennzoil uses metal end caps rather than the fiberboard end caps.
  • The filter media inside the Pennzoil was glued to itself, rather than crimped with a metal bracket.
  • Pennzoil uses a phenolic resin which helps to bind the media and protect during high temperatures.
  • The center tube of the Pennzoil filter is spiraled for better flow; other brands use a straight tube with spot welds.
  • The Pennzoil filter uses a rubber anti-drain back valve. The anti-drain back valve is used to prevent oil from draining back to the crankcase after shutdown. A silicone valve is less likely to break down during high heat than the nitrile rubber.

NOTES:

  • We found excessive glue on the end caps.
  • The Pennzoil had a low number of pleats compared to the others.
  • The Pennzoil had the lowest square inches at 168.
