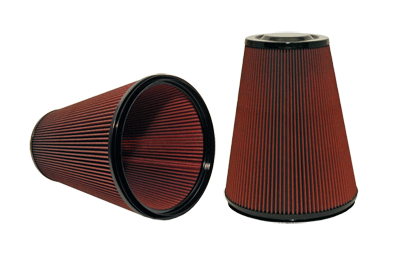

Product Specifications
| Part Number: | 49870 |
| UPC Number: | 765809498709 |
| Style: | Air Filter |
| Service: | Air |
| Type: | |
| Media: | Enhanced Cellulose |
| Height: | 15 (381)* |
| Outer Diameter Top: | 7.25 (184)* |
| Outer Diameter Bottom: | 12.25 (311)* |
| Inside Diameter Top: | Closed: |
| Inside Diameter Bottom: | 10.125 (257)* |
| Ends: | Plastic |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
|
No Gaskets found.. |
|||
Principle Application:
| Principle Application: | Cat Marine Engines |
