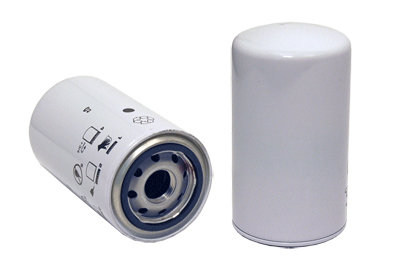

Product Specifications
| Wix Number: | 57488 |
| UPC Number: | 765809574885 |
| Style: | Spin-On Lube Filter |
| Service: | Lube |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 6.631 (168)* |
| Outer Diameter Top: | 3.69 (94)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 27X2 MM |
| By-Pass Valve Setting-PSI: | None |
| Anti-Drain Back Valve: | Yes |
| Beta Ratio: | 2/75=5/20 |
| Burst Pressure-PSI: | 200 |
| Max Flow Rate: | 21 |
| Nominal Micron Rating: | 5 |
| Capacity: | 37 |
| Filter Area: | 532 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 2.783 (71)* | 2.443 (62)* | 0.2 (5)* |
Principle Application:
| Principle Application: | Agco, New Holland, Case, McCormick Equipment |
