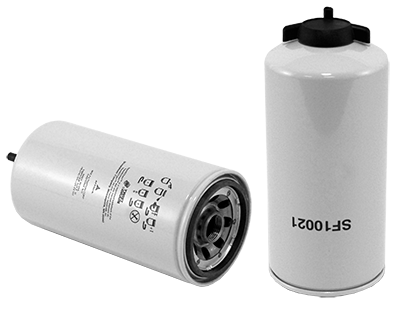

NapaGold 600018 Fuel Filter (Wix WF10021)
600018Retail Price: $76.99
Your Price: $40.32
Filters per Case: 6
Save 10% for $125 order: $$36.29
Save 20% for $200 order: $32.26
Availability: Factory Order Item
$40.32
Product Details
Product Specifications
| Part Number: | WF10021 |
| UPC Number: | 765809224001 |
| Style: | Spin-On Fuel/Water Separator Filter |
| Service: | Fuel |
| Type: | |
| Media: | Enhanced Cellulose |
| Height: | 9.6 (244)* |
| Outer Diameter Top: | 4.23 (107)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Beta Ratio: | 99=25 |
| Max Flow Rate: | 0 |
| Nominal Micron Rating: | 25 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 3.51 (89)* | 3.17 (81)* | 0.22 (6)* |
Principle Application:
| Principle Application: | Racor Fuel Systems - replaces Racor # R120P - this has a one-piece design w/ drain (no sensor port) - eliminates the plastic bowl required for the Racor design - for Racor design (plastic bowl required), use 33774 - if you wish to add a plastic bowl to the WF10021, can add bowl part # WS10003 - remove the drain from the bottom of the filter, install the bowl, then install the drain to the bottom of the bowl. |
