Product Specifications
| Part Number: | WF10214 |
| UPC Number: | 765809300484 |

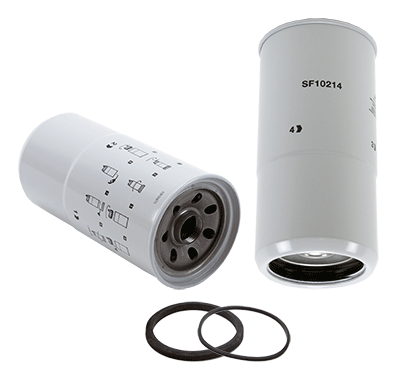

| Style: | Spin On Fuel Water Separator w/ Open End Bottom |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 9.91 (252)* |
| Outer Diameter Top: | 5.1 (130)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1 1/4-12 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Packed | 4.176 (106)* | 3.636 (92)* | 0.321 (8)* |
| Packed | 4.106 (104)* | 3.86 (98)* | 0.123 (3)* |
Principle Application:
| Principle Application: | Case, New Holland Equipment - Bowl Threads 3 3/4-10 |
