Product Specifications
| Part Number: | WS10116 |
| UPC Number: | 765809233317 |

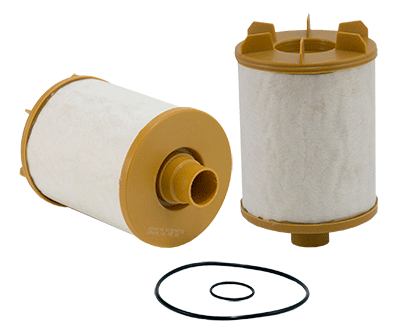

| Style: | Crankcase Ventilation Filter |
| Service: | Crankcase Vent |
| Type: | |
| Media: | Synthetic |
| Height: | 8.02 (204)* |
| Outer Diameter: | 5.09 (129)* |
| Inside Diameter Top: | Closed: |
| Inside Diameter Bottom: | 1.232 (31)* |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Packed (O-Ring) | 6.25 (159)* | 5.834 (148)* | 0.208 (5)* |
| Packed (O-Ring) | 1.859 (47)* | 1.573 (40)* | 0.143 (4)* |
Principle Application:
| Principle Application: | Caterpillar Engines w/ CCV6000 Systems - crankcase ventilation filter Ultra High Efficiency, Grade 10 - per blueprint (swc) |
