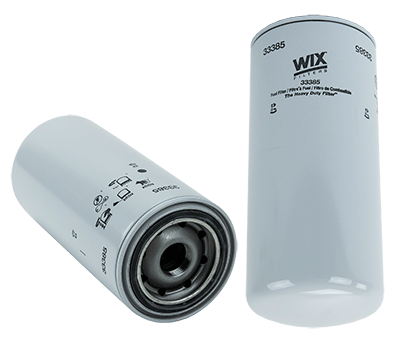

Product Specifications
| Part Number: | 33385 |
| UPC Number: | 765809333857 |
| Style: | Spin-On Fuel Filter |
| Service: | Fuel |
| Type: | |
| Media: | Enhanced Cellulose |
| Height: | 12.184 (309)* |
| Outer Diameter Top: | 5.342 (136)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1 3/8-16 |
| Burst Pressure-PSI: | 280 |
| Max Flow Rate: | 24-28 GPM |
| Nominal Micron Rating: | 6 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 4.320 (110)* | 3.820 (97)* | 0.365 (9)* |
Principle Application:
| Principle Application: | Caterpillar Trucks (6 Micron) |
