Product Specifications
| Part Number: | 33673 |
| UPC Number: | 765809336735 |

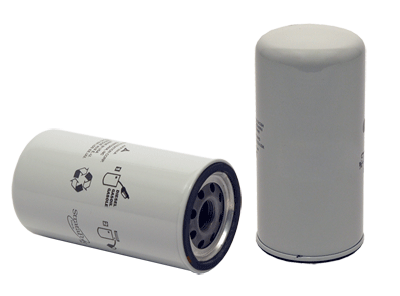

| Style: | Spin-On Fuel Filter |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 5.91 (150)* |
| Outer Diameter Top: | 3.05 (77)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 7/8-14 |
| Beta Ratio: | 10/75=5/10 |
| Burst Pressure-PSI: | 203 |
| Max Flow Rate: | 1 GPM |
| Nominal Micron Rating: | 2 |
| Operating Temp. (min): | -45 |
| Operating Temp. (max): | 250 |
| Capacity: | 24 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 2.83 (72)* | 2.46 (62)* | 0.2 (5)* |
Principle Application:
| Principle Application: | Fuel Filter for Fuel Preporator (AirDog) Fuel Systems |
