Product Specifications
| Part Number: | 33772 |
| UPC Number: | 765809337725 |

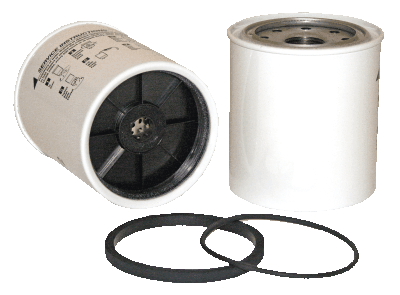

| Style: | Spin On Fuel Water Separator w/ Open End Bottom |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 4.03 (102)* |
| Outer Diameter Top: | 3.79 (96)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Nominal Micron Rating: | 10 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Packed | 3.57 (91)* | 3.159 (80)* | 0.266 (7)* |
| Packed (O-Ring) | 3.469 (88)* | 3.211 (82)* | 0.129 (3)* |
Principle Application:
| Principle Application: | Racor Marine Applications - replaces Racor # S3228UL - 10 Micron |
