Product Specifications
| Part Number: | 33775 |
| UPC Number: | 765809337756 |

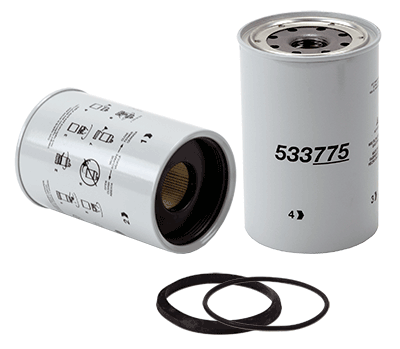

| Style: | Spin On Fuel Water Separator w/ Open End Bottom |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Microglass |
| Height: | 5.52 (140)* |
| Outer Diameter Top: | 3.8 (97)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Max Flow Rate: | 45 GPH |
| Nominal Micron Rating: | 2 |
| Flow Direction: | Inside-out |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Packed | 3.54 (90)* | 3.165 (80)* | 0.33 (8)* |
| Packed | 3.47 (88)* | 3.21 (82)* | 0.13 (3)* |
Principle Application:
| Principle Application: | Racor 245 Fuel Assembly Series - 2 micron - 33771 is 10 micron version - 33441 is 30 micron version |
