Product Specifications
| Part Number: | 33788 |
| UPC Number: | 765809337886 |

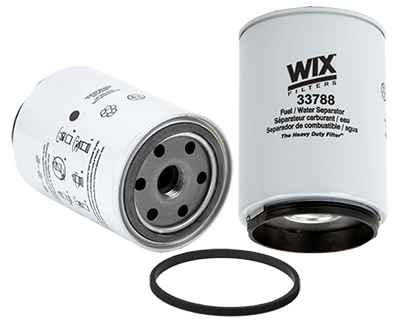

| Style: | Spin On Fuel Water Separator w/ Open End Bottom |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 6.1 (155)* |
| Outer Diameter Top: | 4.36 (111)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Max Flow Rate: | 12-15 GPM |
| Nominal Micron Rating: | 2 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Packed | 3.575 (91)* | 3.175 (81)* | 0.33 (8)* |
| Packed | 4.3 (109)* | 4.01 (102)* | 0.18 (5)* |
Principle Application:
| Principle Application: | Racor 390, 490, 690 Series Fuel/Water Separators (2 micron) - requires a reusable plastic bowl - if bowl required, use WF10136 (order separately) |
