Product Specifications

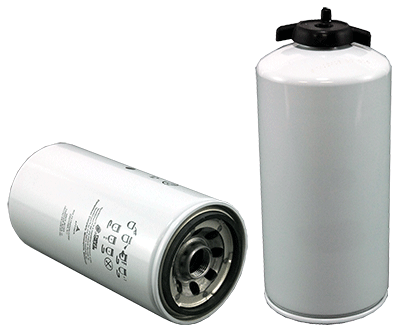

| Part Number: | 33935 |
| UPC Number: | 765809339354 |
| Style: | Spin-On Fuel/Water Separator Filter |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 9.59 (244)* |
| Outer Diameter Top: | 4.25 (108)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Burst Pressure-PSI: | 200 |
| Max Flow Rate: | 12-15 GPM |
| Nominal Micron Rating: | 10 |
| Filter Area: | 393 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 3.56 (90)* | 3.16 (80)* | 0.26 (7)* |
Principle Application:
| Principle Application: | Freightliner Trucks - Complete spin-on w/ drain and sensor port (plastic bowl not required w/ this filter) - sensor port size is 1/2-20 - if you wish to add a plastic bowl to the 33935, can add bowl part # WS10003 - remove the drain from the bottom of the filter, install the bowl, then install the drain to the bottom of the bowl. |
