Product Specifications
| Part Number: | 33955 |
| UPC Number: | 765809339552 |

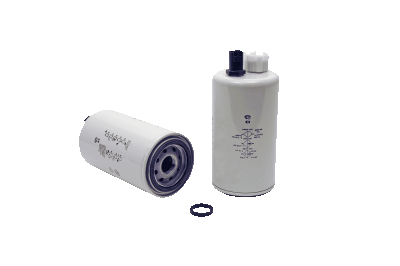

| Style: | Spin-On Fuel/Water Separator Filter |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 7.945 (202)* |
| Outer Diameter Top: | 3.656 (93)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Beta Ratio: | 75=25 |
| Nominal Micron Rating: | 25 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 2.835 (72)* | 2.461 (63)* | 0.21 (5)* |
Principle Application:
| Principle Application: | Cummins QSC, QSL Tier 3 Engines - has drain and sensor plug (has metal drain stem on valve required for marine applications) |
