Product Specifications
| Part Number: | 33963 |
| UPC Number: | 765809339637 |

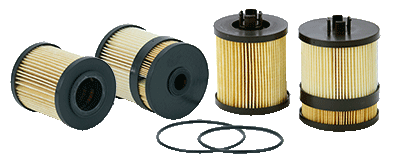

| Style: | Cartridge Fuel Metal Free Filter |
| Service: | Fuel |
| Type: | |
| Media: | Cellulose |
| Height: | 4.76 (121)* |
| Outer Diameter: | 3.58 (91)* |
| Inside Diameter Top: | Closed: |
| Inside Diameter Bottom: | 1.58 (40)* |
| Beta Ratio: | B75=4 |
| Nominal Micron Rating: | 4 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Packed (O-Ring) | 4.218 (107)* | 3.948 (100)* | 0.135 (3)* |
| Packed (O-Ring) | 3.851 (98)* | 3.541 (90)* | 0.155 (4)* |
Principle Application:
| Principle Application: | Ford Superduty PU w/6.4L Powerstroke diesel (08-10), IHC Trucks - (has two different size elements in one box - smaller one is a fuel-water seperator - the larger element is the standard fuel ) |
