Product Specifications

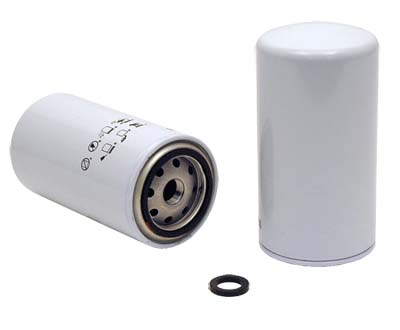

| Part Number: | 33966 |
| UPC Number: | 765809339668 |
| Style: | Spin-On Fuel Filter |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Enhanced Cellulose |
| Height: | 7.22 (183)* |
| Outer Diameter Top: | 3.69 (94)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 20X1.5 MM |
| Beta Ratio: | B5=75 |
| Max Flow Rate: | 8-10 GPM |
| Nominal Micron Rating: | 5 |
| Filter Area: | 688 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 2.83 (72)* | 2.475 (63)* | 0.225 (6)* |
Principle Application:
| Principle Application: | Cummins ISB Engines - goes on the pressure side of this engine - 33965 is for the suction side - for NanoPro version, use 33966NP |
