Product Specifications
| Part Number: | 33970 |
| UPC Number: | 765809339705 |

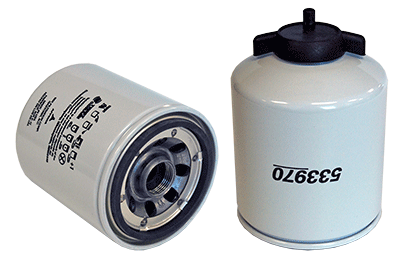

| Style: | Spin-On Fuel/Water Separator Filter |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 5.79 (147)* |
| Outer Diameter Top: | 4.23 (107)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Beta Ratio: | 2/75=9/40 |
| Burst Pressure-PSI: | 200 |
| Nominal Micron Rating: | 9 |
| Capacity: | 70 |
| Filter Area: | 682 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 3.54 (90)* | 3.16 (80)* | 0.21 (5)* |
Principle Application:
| Principle Application: | New Holland, Freightliner - if you wish to add a plastic bowl to the 33970, can add bowl part # WS10003 - remove the drain from the bottom of the filter, install the bowl, then install the drain to the bottom of the bowl. |
