Product Specifications
| Part Number: | 33991 |
| UPC Number: | 765809339910 |

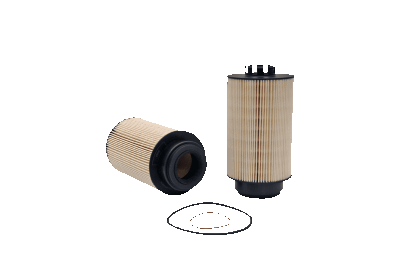

| Style: | Cartridge Fuel Metal Free Filter |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 7.248 (184)* |
| Outer Diameter: | 3.74 (95)* |
| Inside Diameter Top: | 0.551 (14)* |
| Inside Diameter Bottom: | 1.771 (45)* |
| Beta Ratio: | B2=2 |
| Max Flow Rate: | 3 GPM |
| Nominal Micron Rating: | 11 |
| Filter Area: | 911 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Packed | 4.213 (107)* | 3.907 (99)* | 0.153 (4)* |
| Packed | 2.158 (55)* | 1.968 (50)* | 0.095 (2)* |
Principle Application:
| Principle Application: | IHC Maxxforce 11, Maxxforce 13, & N13 Engines |
