Product Specifications

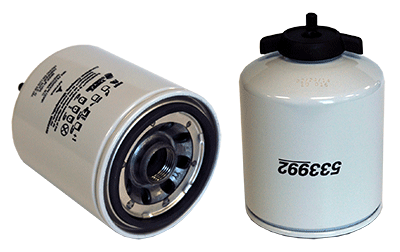

| Part Number: | 33992 |
| UPC Number: | 765809339927 |
| Style: | Spin-On Fuel/Water Separator Filter |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 5.79 (147)* |
| Outer Diameter Top: | 3.48 (88)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Beta Ratio: | 2/75=9/40 |
| Burst Pressure-PSI: | 200 |
| Nominal Micron Rating: | 9 |
| Capacity: | 50 |
| Filter Area: | 493 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 3.4 (86)* | 3.16 (80)* | 0.21 (5)* |
Principle Application:
| Principle Application: | Racor 325 series fuel systems - Complete spin-on w/ drain & sensor port - sensor size is 1/2-20 - Can be used in place of 33630 to eliminate the plastic bowl - for complete spin-on w/ drain only (no sensor), use WF10015 - if you wish to add a plastic bowl to the 33992, can add bowl part # WS10003 - remove the drain from the bottom of the filter, install the bowl, then install the drain to the bottom of the bowl. |
