Product Specifications

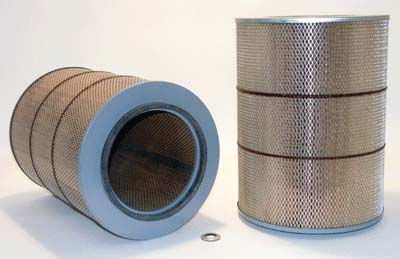

| Part Number: | 42225 |
| UPC Number: | 765809422254 |
| Style: | Air Filter |
| Service: | Air |
| Type: | |
| Media: | Cellulose |
| Height: | 16.5 (419)* |
| Outer Diameter: | 12.088 (307)* |
| Inside Diameter Top: | 0.875 (22)* |
| Inside Diameter Bottom: | 7.729 (196)* |
| CFM: | 990 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| 15295 8 | 12.31 (313)* | 11.552 (293)* | 4.2 (107)* |
8 Housing Gasket not packaged with filter-order separately
Principle Application:
| Principle Application: | A-C, Champion, Case, Hino, IHC, Iveco, New Holland, Komatsu, Other (Outer used w/ 42226 inner or 49510 inner for ceratin Komatsu models) - For Nano Pro Version use 42225NP |
