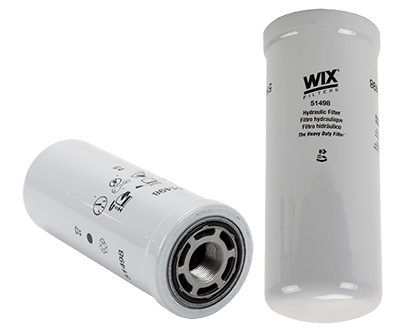

Product Specifications
| Wix Number: | 51498 |
| UPC Number: | 765809514980 |
| Style: | Spin-On Hydraulic Filter |
| Service: | Hydraulic |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 9.49 (241)* |
| Outer Diameter Top: | 3.81 (97)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1 3/8-12 |
| By-Pass Valve Setting-PSI: | None |
| Beta Ratio: | 2/20=20/33 |
| Burst Pressure-PSI: | 1000 |
| Max Flow Rate: | 24-28 GPM |
| Nominal Micron Rating: | 33 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 2.762 (70)* | 2.484 (63)* | 0.278 (7)* |
Principle Application:
| Principle Application: | Various Hydraulic Applications (33 micron) |
