Product Specifications
| Wix Number: | 51567 |
| UPC Number: | 765809515673 |

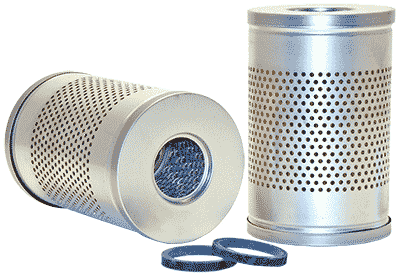

| Style: | Cartridge Hydraulic Metal Canister Filter |
| Service: | Hyd/Transmission |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 6.991 (178)* |
| Outer Diameter: | 4.53 (115)* |
| Inside Diameter: | 1.796 (46)* |
| Beta Ratio: | 2/20=35/52 |
| Nominal Micron Rating: | 35 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| 15338 Packed (2) | 2.106 (53)* | 1.750 (44)* | 0.250 (6)* |
| 15435 8 | 4.772 (121)* | 4.336 (110)* | 0.25 (6)* |
| 15320 8 | 3.725 (95)* | 1.725 (44)* | 0.065 (2)* |
8 Housing Gasket not packaged with filter-order separately
Principle Application:
| Principle Application: | Various HD Equipment w/ Gresen Hyds (33 Micron) - for 10 micron version, use 51506 |
