Product Specifications

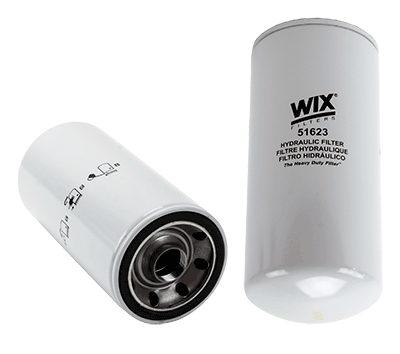

| Wix Number: | 51623 |
| UPC Number: | 765809516236 |
| Style: | Spin-On Transmission Filter |
| Service: | Transmission |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 10.287 (261)* |
| Outer Diameter Top: | 4.59 (117)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1 5/16-12 |
| By-Pass Valve Setting-PSI: | None |
| Beta Ratio: | 2/20=12/27 |
| Burst Pressure-PSI: | 680 |
| Max Flow Rate: | 24-26 GPM |
| Nominal Micron Rating: | 25 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 4.200 (107)* | 3.662 (93)* | 0.415 (11)* |
Principle Application:
| Principle Application: | Allison Transmissions HT740, HT750 (81-93) - High Efficiency version is 57623 |
