Product Specifications
| Wix Number: | 51627 |
| UPC Number: | 765809516274 |

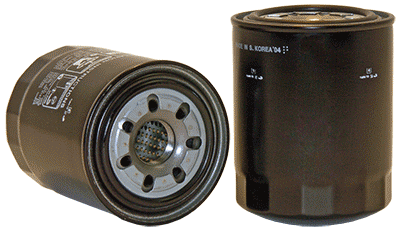

| Style: | Spin-On Lube Filter |
| Service: | Lube |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 5.571 (142)* |
| Outer Diameter Top: | 4.252 (108)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 30X1.5 MM |
| By-Pass Valve Setting-PSI: | 10 |
| Beta Ratio: | 2/20/75=12/25/28 |
| Max Flow Rate: | 12 to 16 GPM |
| Nominal Micron Rating: | 12 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 3.400 (86)* | 3.000 (76)* | 0.310 (8)* |
Principle Application:
| Principle Application: | Toyota Forklifts, Landcruiser diesel (86-87) |
