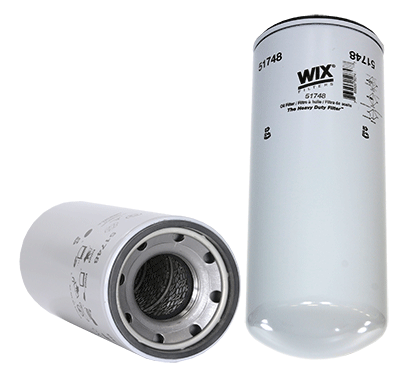

Product Specifications
| Wix Number: | 51748 |
| UPC Number: | 765809517486 |
| Style: | Spin-On Lube Filter |
| Service: | Lube |
| Type: | Full Flow/By-Pass |
| Media: | Enhanced Cellulose |
| Height: | 11.228 (285)* |
| Outer Diameter Top: | 4.668 (119)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 2 1/4-12 |
| By-Pass Valve Setting-PSI: | None |
| Beta Ratio: | 2/20 = 10/22 |
| Burst Pressure-PSI: | 500 |
| Max Flow Rate: | 28 GPM |
| Nominal Micron Rating: | 35 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 4.362 (111)* | 4.002 (102)* | 0.425 (11)* |
Principle Application:
| Principle Application: | Cummins Engines, Komatsu (Full-Flow/By-Pass - shorter version is 51741) |
