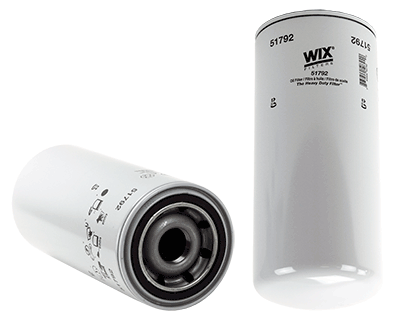

Product Specifications
| Wix Number: | 51792 |
| UPC Number: | 765809517929 |
| Style: | Spin-On Lube Filter |
| Service: | Lube |
| Type: | Full Flow |
| Media: | Enhanced Cellulose |
| Height: | 12.184 (309)* |
| Outer Diameter Top: | 5.342 (136)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1 1/2-16 |
| By-Pass Valve Setting-PSI: | None |
| Beta Ratio: | 2/20=8/21 |
| Burst Pressure-PSI: | 300 |
| Max Flow Rate: | 28-30 GPM |
| Nominal Micron Rating: | 19 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 4.320 (110)* | 3.820 (97)* | 0.365 (9)* |
Principle Application:
| Principle Application: | Caterpillar Engines - standard version - for high efficiency microglass media, use 51792XE - for extended drain version, use 51792XD - for performance in between the standard and the XE version, use 57792 (extra-efficient) |
