Product Specifications

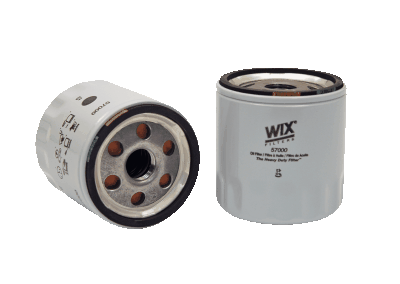

| Wix Number: | 57000 |
| UPC Number: | 765809570009 |
| Style: | Spin-On Lube Filter |
| Service: | Lube |
| Type: | Full Flow |
| Media: | Enhanced Cellulose |
| Height: | 3.16 (80)* |
| Outer Diameter Top: | 3.05 (77)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 3/4-16 |
| By-Pass Valve Setting-PSI: | 8 |
| Anti-Drain Back Valve: | Yes |
| Beta Ratio: | 2/20=6/20 |
| Burst Pressure-PSI: | 341 |
| Nominal Micron Rating: | 21 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 2.75 (70)* | 2.49 (63)* | 0.17 (4)* |
Principle Application:
| Principle Application: | Yamaha 4-stroke Outboard Marine Engines, JLG, Deutz, Komatsu, Other (used as Lube orTorque Converter) |
