Product Specifications
| Part Number: | 57012 |
| UPC Number: | 765809570122 |

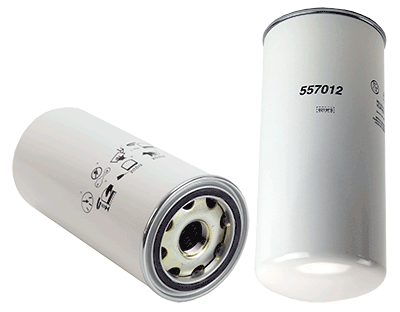

| Style: | Spin-On Transmission Filter |
| Service: | Transmission |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 12.1 (307)* |
| Outer Diameter Top: | 5.38 (137)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1 1/2-16 |
| By-Pass Valve Setting-PSI: | 30 |
| Beta Ratio: | 2/75=23/45 |
| Burst Pressure-PSI: | 400 |
| Nominal Micron Rating: | 23 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 4.375 (111)* | 3.95 (100)* | 0.21 (5)* |
Principle Application:
| Principle Application: | John Deere Combines |
