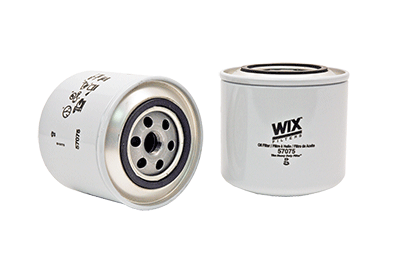

Product Specifications
| Wix Number: | 57075 |
| UPC Number: | 765809570757 |
| Style: | Spin-On Lube Filter |
| Service: | Lube |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 4.49 (114)* |
| Outer Diameter Top: | 4.31 (109)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 3/4-16 |
| By-Pass Valve Setting-PSI: | 30 |
| Anti-Drain Back Valve: | Yes |
| Beta Ratio: | 2/20=25/43 |
| Burst Pressure-PSI: | 417 |
| Max Flow Rate: | 7-9 GPM |
| Nominal Micron Rating: | 35 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 2.77 (70)* | 2.4 (61)* | 0.22 (6)* |
Principle Application:
| Principle Application: | Case, New Holland Tractors |
