Product Specifications
| Wix Number: | 57138 |
| UPC Number: | 765809571389 |

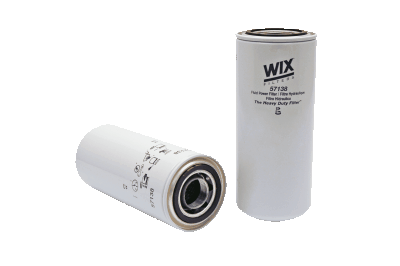

| Style: | Spin-On Hydraulic Filter |
| Service: | Hydraulic |
| Type: | Full Flow |
| Media: | Microglass |
| Height: | 11.316 (287)* |
| Outer Diameter Top: | 4.668 (119)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1 3/4-12 |
| By-Pass Valve Setting-PSI: | None |
| Beta Ratio: | 2/20=11/19 |
| Burst Pressure-PSI: | 500 |
| Nominal Micron Rating: | 11 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 3.435 (87)* | 2.935 (75)* | 0.365 (9)* |
Principle Application:
| Principle Application: | Various Ingersoll-Rand Compressors |
