Product Specifications

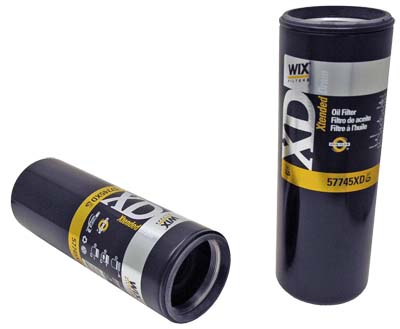

| Wix Number: | 57745XD |
| UPC Number: | 765809527454 |
| Style: | Spin-On Lube Filter |
| Service: | Lube |
| Type: | Full Flow/By-Pass |
| Media: | Microglass |
| Height: | 13.89 (353)* |
| Outer Diameter Top: | 4.66 (118)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 95X2.5 MM |
| By-Pass Valve Setting-PSI: | None |
| Burst Pressure-PSI: | 305 |
| Max Flow Rate: | 34-38 GPM |
| Nominal Micron Rating: | 35 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 4.670 (119)* | 4.000 (102)* | 0.200 (5)* |
Principle Application:
| Principle Application: | Cummins ISM, ISX, QSX Engines (For short version, use 57746XD) |
