Product Specifications
| Part Number: | WF10010 |
| UPC Number: | 765809222854 |

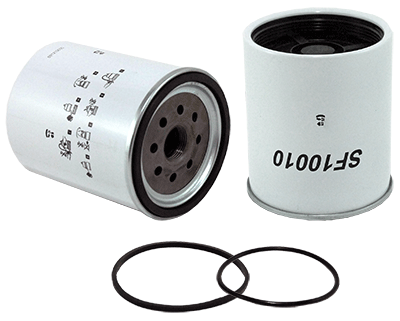

| Style: | Spin On Fuel Water Separator w/ Open End Bottom |
| Service: | Fuel |
| Type: | |
| Media: | Cellulose |
| Height: | 5.128 (130)* |
| Outer Diameter Top: | 4.346 (110)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Nominal Micron Rating: | 30 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 4.087 (104)* | 3.707 (94)* | 0.26 (7)* |
| Packed | 4.08 (104)* | 3.804 (97)* | 0.135 (3)* |
| Packed | 3.511 (89)* | 3.241 (82)* | 0.135 (3)* |
Principle Application:
| Principle Application: | Volvo HD Trucks - has open bottom that requires reusable plastic bowl - bowl threads are 95x2.5 mm same as 3 3/4-10 bowl thread |
