Product Specifications
| Part Number: | WF10011 |
| UPC Number: | 765809223158 |

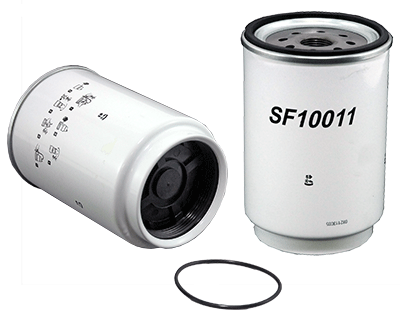

| Style: | Spin On Fuel Water Separator w/ Open End Bottom |
| Service: | Fuel |
| Type: | |
| Media: | Enhanced Cellulose |
| Height: | 6.3 (160)* |
| Outer Diameter Top: | 4.26 (108)* |
| Outer Diameter Bottom: | 3.65 (93)* |
| Thread Size: | 1-14 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 4.14 (105)* | 3.72 (94)* | 0.23 (6)* |
| Packed | 3.37 (86)* | 3.23 (82)* | 0.14 (4)* |
Principle Application:
| Principle Application: | Volvo Equipment - has open bottom that requies a reusable plastic bowl - bowl threads are 80x2.5 mm |
