Product Specifications
| Part Number: | WF10012 |
| UPC Number: | 765809223547 |

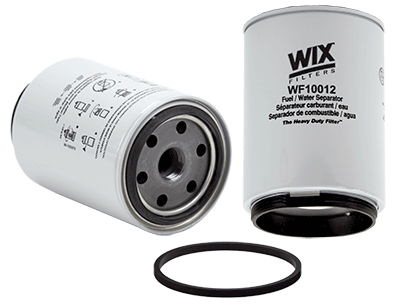

| Style: | Spin On Fuel Water Separator w/ Open End Bottom |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 6.13 (156)* |
| Outer Diameter Top: | 4.344 (110)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Nominal Micron Rating: | 30 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Packed | 4.092 (104)* | 3.727 (95)* | 0.31 (8)* |
| Packed (O-Ring) | 4.142 (105)* | 3.876 (98)* | 0.133 (3)* |
Principle Application:
| Principle Application: | Freightliner Trucks - Racor Fuel Systems - has 3 3/4-10 buttress threads on the bowl end - if bowl required, use WF10136 (order separately) - (if higher efficiency required, use 33231) |
