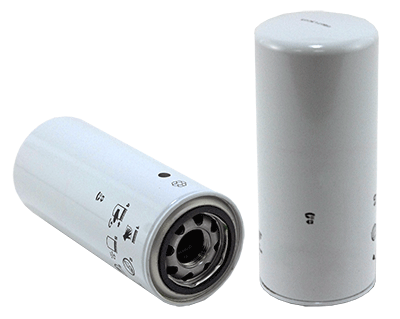

Product Specifications
| Part Number: | WF10023 |
| UPC Number: | 765809224063 |
| Style: | Spin-On Fuel Filter |
| Service: | Fuel |
| Type: | |
| Media: | Cellulose |
| Height: | 8.718 (221)* |
| Outer Diameter Top: | 3.687 (94)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1 1/4-12 |
| Beta Ratio: | 2/75=3/10 |
| Burst Pressure-PSI: | 200 |
| Nominal Micron Rating: | 3 |
| Capacity: | 37 |
| Filter Area: | 849 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 0 ()* | 0 ()* | 0 ()* |
Principle Application:
| Principle Application: | EMD Marine Diesels |
