Product Specifications
| Part Number: | WF10078 |
| UPC Number: | 765809228658 |

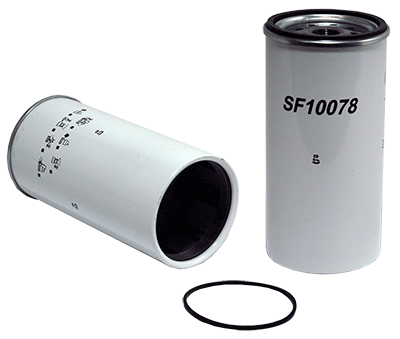

| Style: | Spin On Fuel Water Separator w/ Open End Bottom |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 8.661 (220)* |
| Outer Diameter Top: | 4.26 (108)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Beta Ratio: | 20=10 |
| Nominal Micron Rating: | 5 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 4.14 (105)* | 3.74 (95)* | 0.25 (6)* |
Principle Application:
| Principle Application: | Volvo Equipment - has open bottom that requires reusable plastic bowl - can use 33683 which is a complete spin-on w/ drain and sensor port (plastic bowl no longer required) |
