Product Specifications
| Part Number: | WF10250 |
| UPC Number: | 765809310476 |

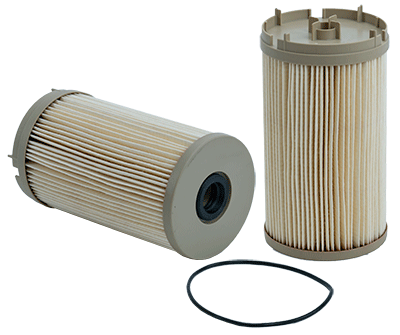

| Style: | Cartridge Fuel Metal Free Filter |
| Service: | Fuel |
| Type: | Full Flow |
| Media: | Cellulose |
| Height: | 7.46 (189)* |
| Outer Diameter: | 4.12 (105)* |
| Inside Diameter Top: | Closed: |
| Inside Diameter Bottom: | 0.827 (21)* |
| Nominal Micron Rating: | 30 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Packed | 4.898 (124)* | 4.618 (117)* | 0.140 (4)* |
Principle Application:
| Principle Application: | Paccar Trucks - Kenworth, Freightliner, Peterbilt, DAF with Tier IV Engines - 30 micron (For 10 micron, use WF10249) |
