Product Specifications

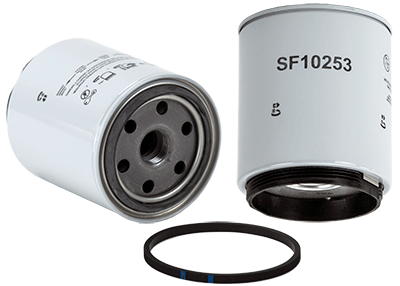

| Part Number: | WF10253 |
| UPC Number: | 765809310957 |
| Style: | Spin On Fuel Water Separator w/ Open End Bottom |
| Service: | Fuel |
| Type: | |
| Media: | Enhanced Cellulose |
| Height: | 5.25 (133)* |
| Outer Diameter Top: | 4.282 (109)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Burst Pressure-PSI: | 290 |
| Max Flow Rate: | 12-15 GPM |
| Nominal Micron Rating: | 30 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 3.6 (91)* | 3.21 (82)* | 0.34 (9)* |
| Packed | 4.226 (107)* | 3.926 (100)* | 0.225 (6)* |
Principle Application:
| Principle Application: | Various Case/New Holland equipment, Freightliner, Other - 30 Micron Version of 33231 - Bowl threads are 3-3/4-10 |
