Product Specifications
| Part Number: | WS10138 |
| UPC Number: | 765809327528 |
| Style: | Fuel (Complete In-Line) Filter |
| Service: | Fuel |
| Type: | |
| Media: | |
| Height: | 7.8 (198)* |
| Outer Diameter Top: | 6.14 (156)* |
| Outer Diameter Bottom: | Closed: |
| Nominal Micron Rating: | 2 |
| Inlet: | 3/8 |
| Outlet: | 3/8 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
|
No Gaskets found.. |
|||
Principle Application:

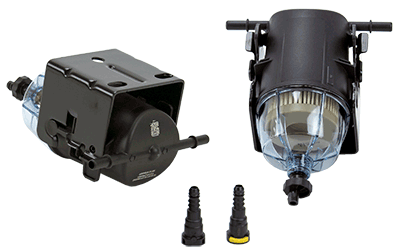

| Principle Application: | Racor In-line Fuel Filter for diesel engines rated up to 140 HP - has 2 loose quick connect fittings and reusable plastic bracket - 2 micron (after installing this part, use the fuel element only # WS10139 - bracket is reusable) |
